Brand Name : TRUCKMAN AUTO
Model Number : TKMW361
Certification : SGS, BV, CIQ
Place of Origin : CHINA
MOQ : 1 Unit
Price : negotiable
Payment Terms : L/C, T/T
Supply Ability : 1500 Unit / Per Month
Delivery Time : 20 working days
Packaging Details : Nude
Loading Capacity : 50000-70000kg
Axle : 3 axle, 3x16000kg
Tire : 12.00R20, 12+1 spare tire
Material : High strength steel Q345
Suspension : mechanical suspension
Support Leg : JOST brand, 28 tons

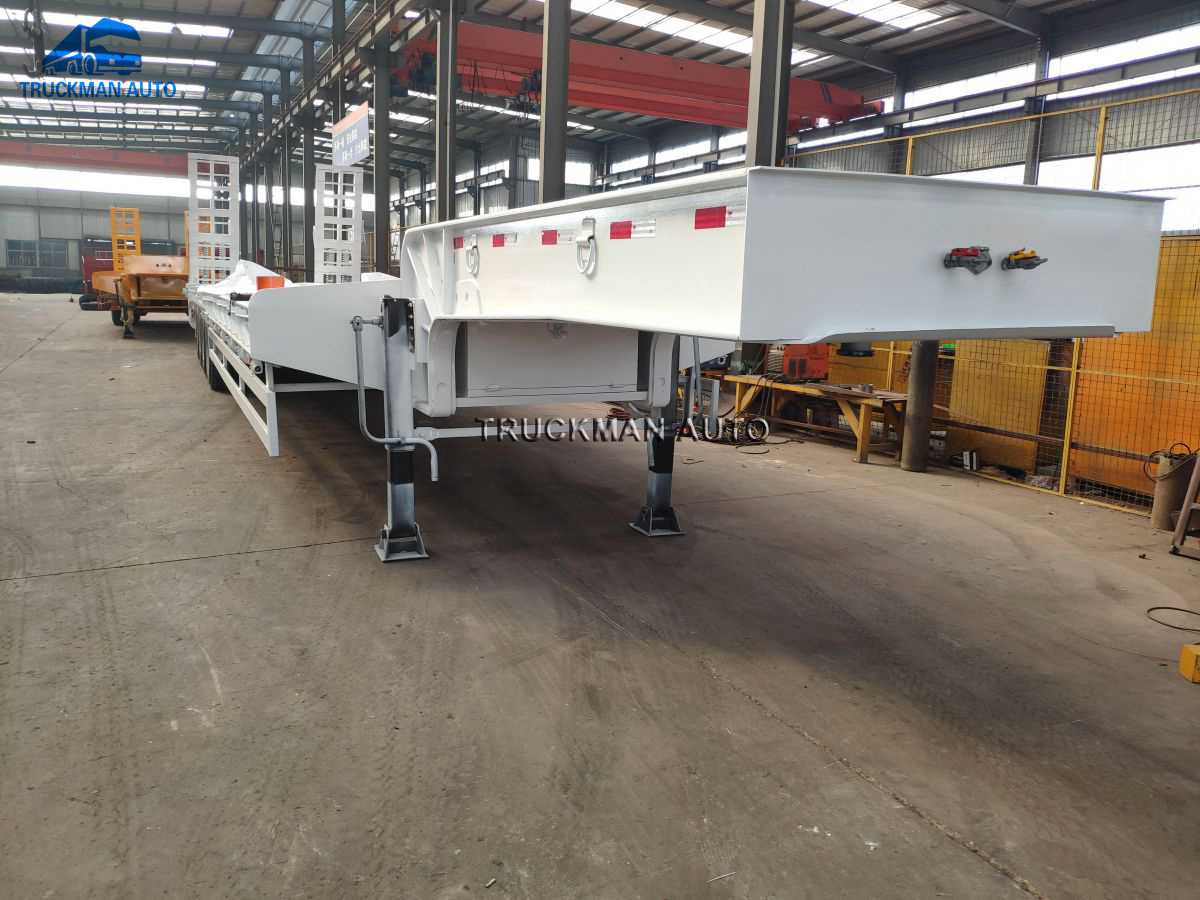

Heavy Duty Loading Low Bed Semi Trailer For Excavator Transit
-1. Low Bed Semi Trailer Main Detail.
Low bed semi trailer also called Lowboy Semi Trailer, it’s same function used for the transport the construction machinery, such as the wheel loader, excavator, road roller and bulldozer etc. The width of Low Bed Semi Trailer is 3000mm, also add the 200mm each side for more width machinery transit.
-2. Low Bed Semi Trailer Main Specification.
Description | Parameter value |
Product Name | Low Bed Semi Trailer |
Loading Weight | 70,000kg |
Tare Weight | 11,000kg |
Axle | 3 axle, 3x16 tons |
Suspension | America type, 8mm thickness |
Leaf Spring | 90x16mmx10pcsx6sets |
Rim | 16mm thickness |
Tire | 12.00R20 or 315/80R22.5, 12 pcs |
Brake System | WABCO brand, ABS and 6 pcs brake chamber |
Thickness Of Frame | Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
Material | Q345, high strength steel |
Ladder | Spring type, 800mm |
Loading Area | 9000x3000x1350mm |
Dimension | 12500x3000x3100mm |
The Low Bed Semi Trailer could design according to your request.
-3. Low Bed Semi Trailer Shipment Picture.
2 units and 3 units ship together could save a lot freight cost, if you worry the rusty issue. We suggest you
choose the RO-RO vessel, picture as the follow:
And the advantage of RO-RO vessel is fast shipment time, no rusty issue. And the port cost is very lower.
![]() |
